Foam Types
Not sure which foam type you need to pick when placing an order. Read more about the foam types we offer and make you decision, have any questions, feel free to contact us!

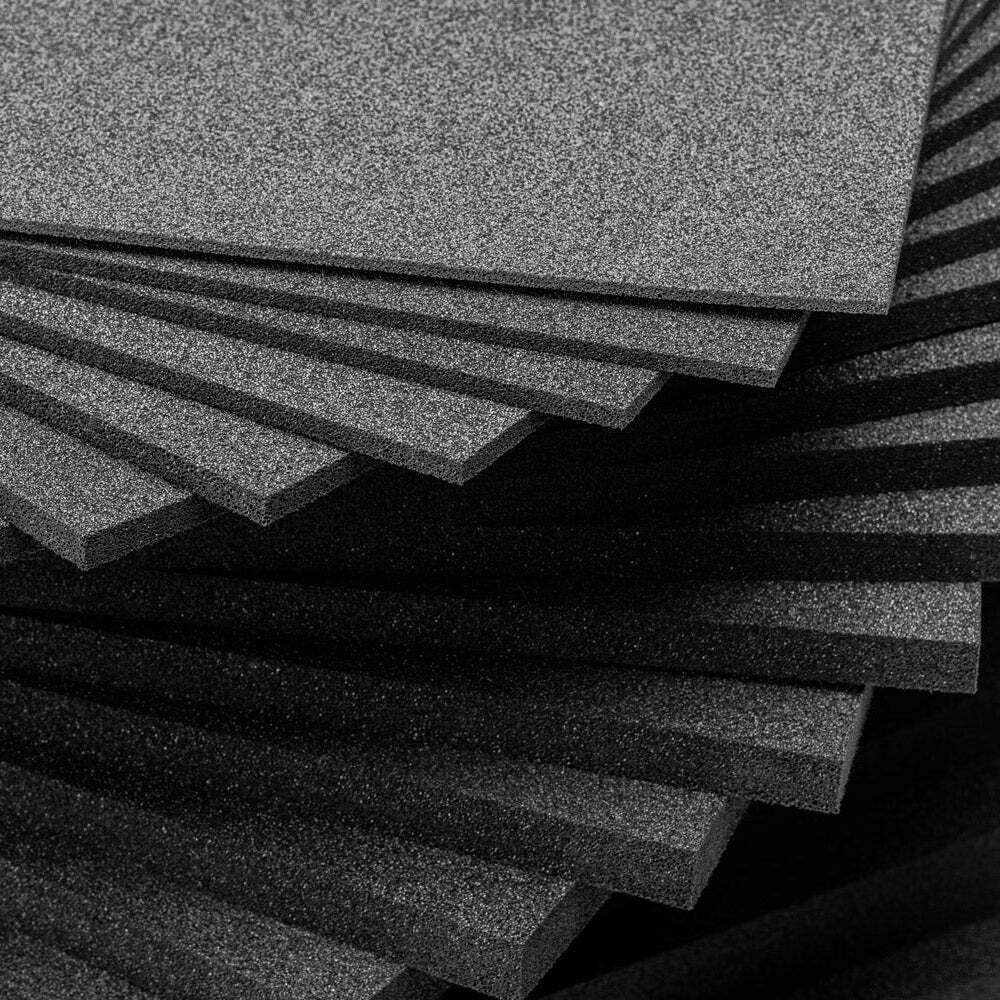

ProCell
ProCell is our top-of-the-line most used foam for any application and industry. It has a luxurious look, doesn't smell and protects your items from minor impact. It is a premium foam all-round.
Specifications
| Property | Specification | Details |
|---|---|---|
| Density | ISO 485 | 25-31 kg/m3 (28 avg.) |
| Thermal Stability | ASTM D3575, SUffix S; ISO 2796 | < -5% |
| Water Absortion | ISO 2896 | < 1% by volume |
Applications:
Everything.

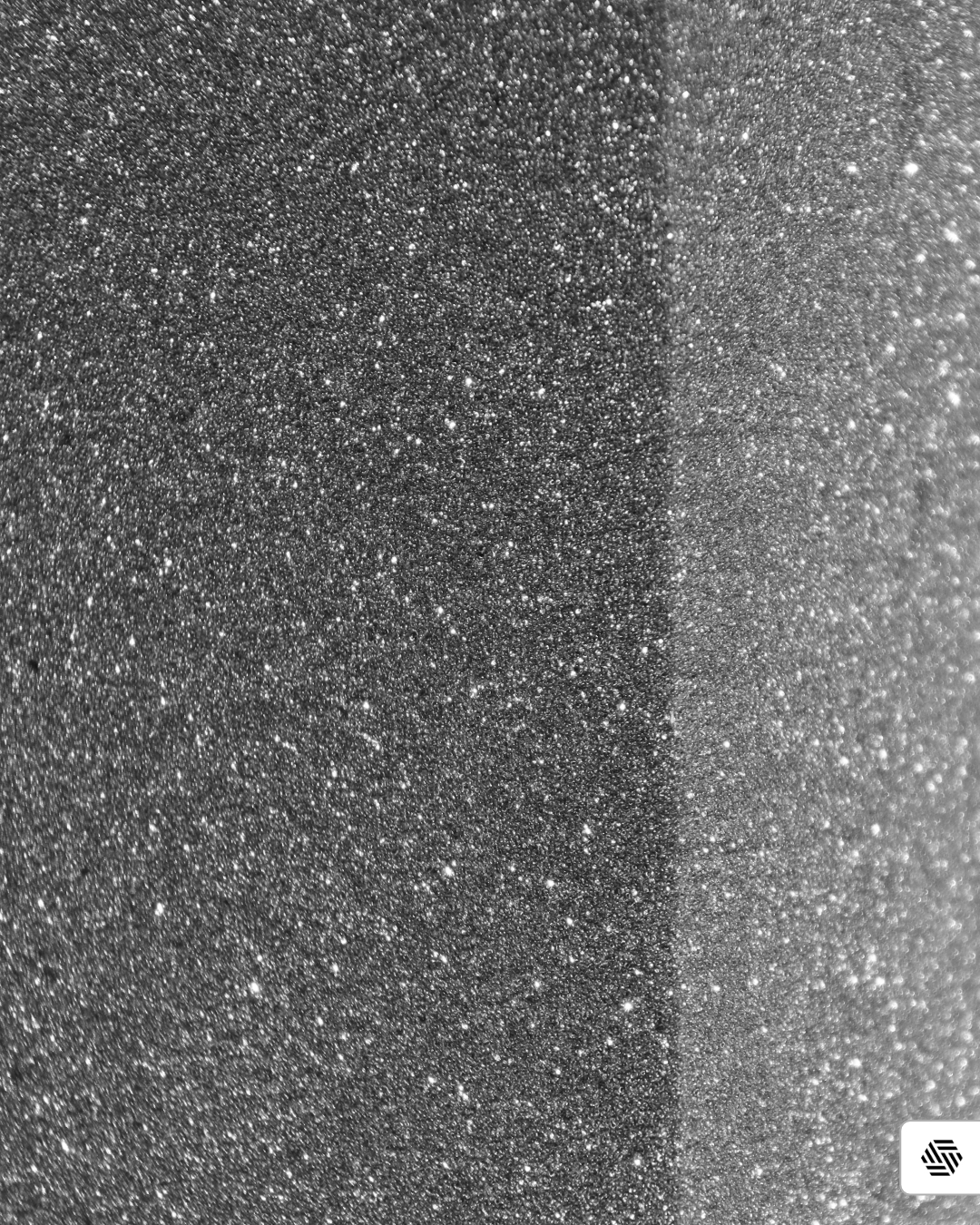

SoftCell
SoftCell, like it says in the name, is a softer foam. It is mainly used to transport small lightweight items in a lightweight case or box. It is also oftenly used as lid foam instead of the regular convoluted foam.
Specifications
| Property | Specification | Details |
|---|---|---|
| Density | ISO 845 | 19-23 kg/m3 |
| Compression load deflection | ISO 3386/1 | 3.6-5.4 kPa |
| Tensile strenght | ISO 1798 | > 130 kPa |
| Elongation at break | ISO 1798 | > 160% |
Applications:
Lightweigth packaging, small fragile components, filler foam and more.

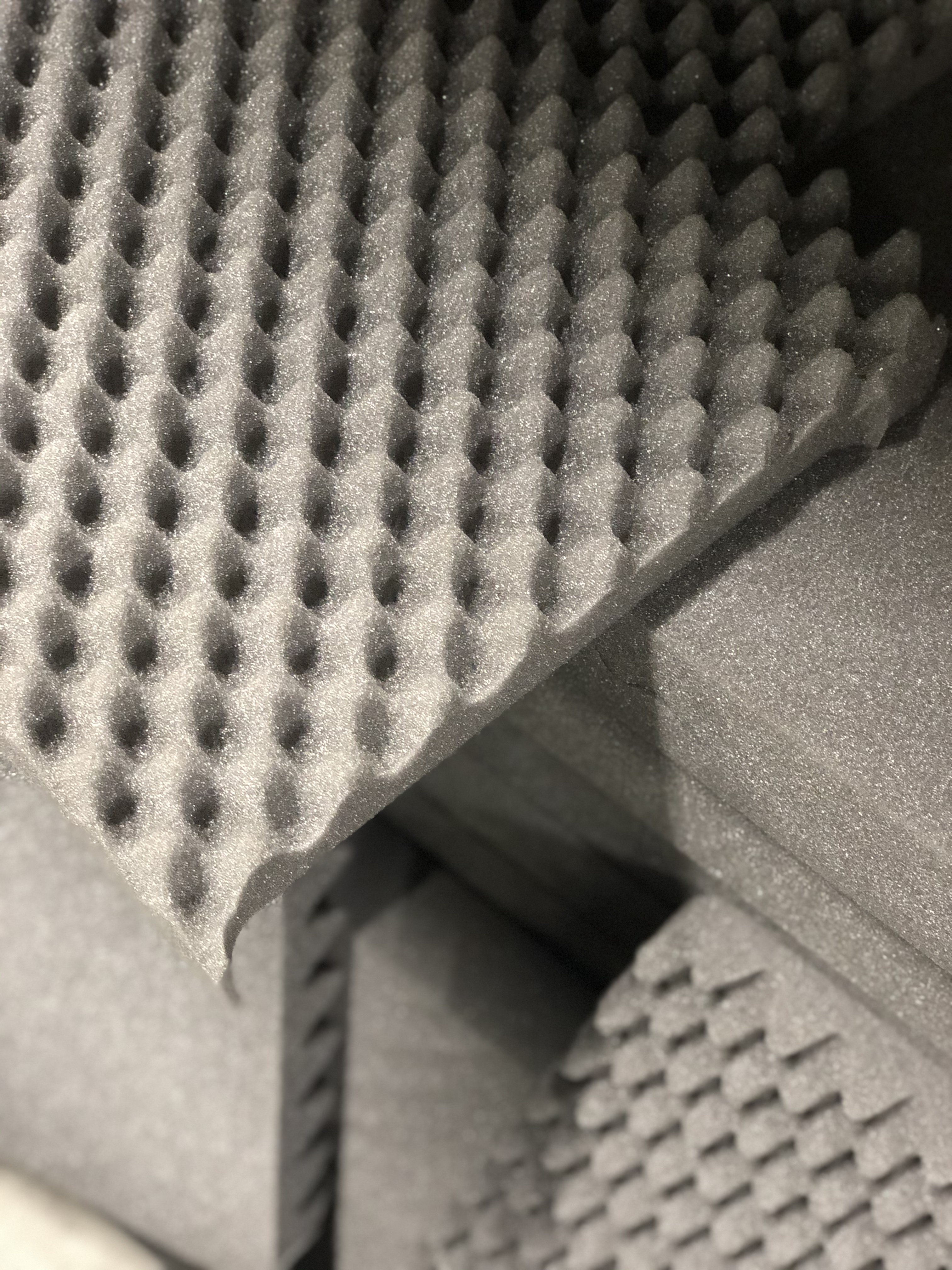

Convoluted SoftCell
Almost every case comes with a standard convoluted softcell lid foam, it is made to protect the items you have in the base of the case. It is designes to put a little pressure on the items below.
Specifications
| Property | Specification | Details |
|---|---|---|
| Density | ISO 845 | 19-23 kg/m3 |
| Compression load deflection | ISO 3386/1 | 3.6-5.4 kPa |
| Tensile strenght | ISO 1798 | > 130 kPa |
| Elongation at break | ISO 1798 | > 160% |
Applications:
Lid Foam.
